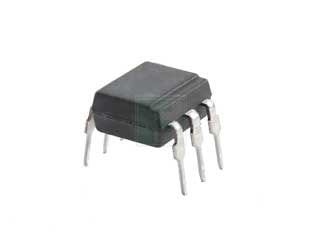

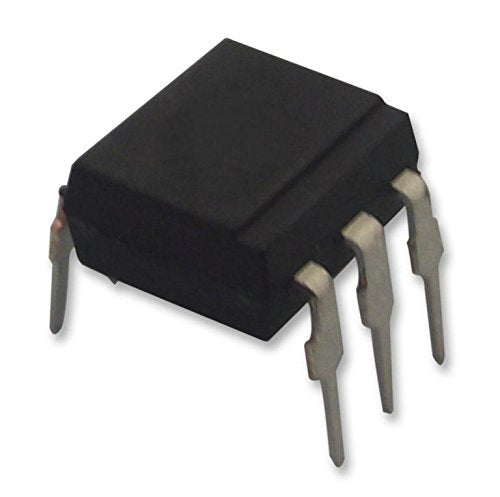

Opto Analog Optocoupler DIP6

Condition: New
Brand: Vishay
MPN: 4N35
MPN Xref:4N35, IR3226, 78-4N35, 859-4N35, 4N35-ND, 70225530, 17535610, VISH-0078548, TU24N35

This is a DIP6 opto analog optocoupler with 1 channel and a maximum insulation voltage of 3.5kV. It is suitable for applications such as AC mains detection and logic ground isolation.

Type of optocoupler	optocoupler
Mounting	THT
Number of channels	1
Kind of output	transistor
Insulation voltage	5.3kV
CTR@If	100%@100mA
Collector-emitter voltage	30V
Case	DIP6
Turn-on time	10?s
Turn-off time	10?s
Manufacturer series	4N35
Application	AC mains detection, reed relay driving, logic ground isolation
Channel Type	P
Current Transfer Ratio	100
Drain to Source On Resistance	10^11 Ohms
Forward Voltage, Diode	60 mA
Input Type	LED
Mounting Type	Leaded
Operating and Storage Temperature	-55 to +100 °C, (Operating) - 55 to +150 °C, (Storage)
Output Type	Transistor
Package Type	6-Pin DIP
Power Dissipation	150 mW
Series	4N35 Series
Type	Opto
Inventory	0
EAN	5052406864330
CTR (%)	100
V(isol) Max. (V)	3.5k
Ic Max. (A)	100m
If Max. (A)	60m
@If (test) (A)	10m
PD Max. (W)	300m
t(resp) (S)	10u
VCE(sat) Max.	0.3
Vbr CEO	30
Vf Max.	1.5
@Ic (test)	500u
@VCE (test)	10
Oper. Temp (?C) Min	-55
Oper. Temp (?C) Max.	100
@If (A)	10m
Number of Chan.	1
Pinout Equivalence Number	6-13
Surface Mounted Yes/No	NO
