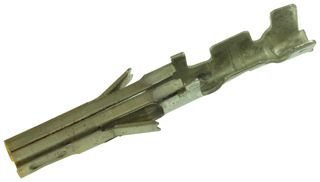

Mini-Fit Plus Female Socket Contact 46018-2541

Condition: New
Brand: MOLEX
MPN: 46018-2541
MPN Xref:46018-2541, 2411393, MOL46018-2541.P, 0460182541, 70229369, MOLE-0123259, 460182541, WM6275TR-ND, MOL46018-2541

This contact is designed for use with Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings. It has a crimp termination method and a gold contact plating for optimal performance.

Gender	Female
Contact Material	Copper Alloy
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Gold
Termination Method	Crimp
Maximum Wire Size AWG	22AWG
Maximum Wire Size mm²	0.35mm²
Series	Mini-Fit Plus
Minimum Wire Size AWG	28AWG
Minimum Wire Size mm²	0.08mm²
Series Number	46018
Stock
Packaging	Reel
Product Category	Headers & Wire Housings
Product Type	Contacts
Part # Aliases	0460182541
Wire Gauge	24-22
Current Rating	13 A
Manufacturer Part No.	46018-2541
Order Multiple	6000
Termination Style	Crimp
Tradename	Mini-Fit, HMC
Minimum Order	6000
Contact Gender	Socket (Female)
Voltage Rating	600 V
Alternate Part No.	538-46018-2541
Wire Range	24 to 22 AWG
Max. Voltage	600V
Connection Material	Copper Alloy
Connection Type	Female, Crimp or Compression
Insulation Dia	1.20-1.80mm
Package Quantity	1
Alternate Mfr Part Number	46018-2541
Contact Type	Socket
Family Name	Mini-Fit Plus
Plating Material	Gold
Special Features	Low-Halogen
Wire Size	24-22
