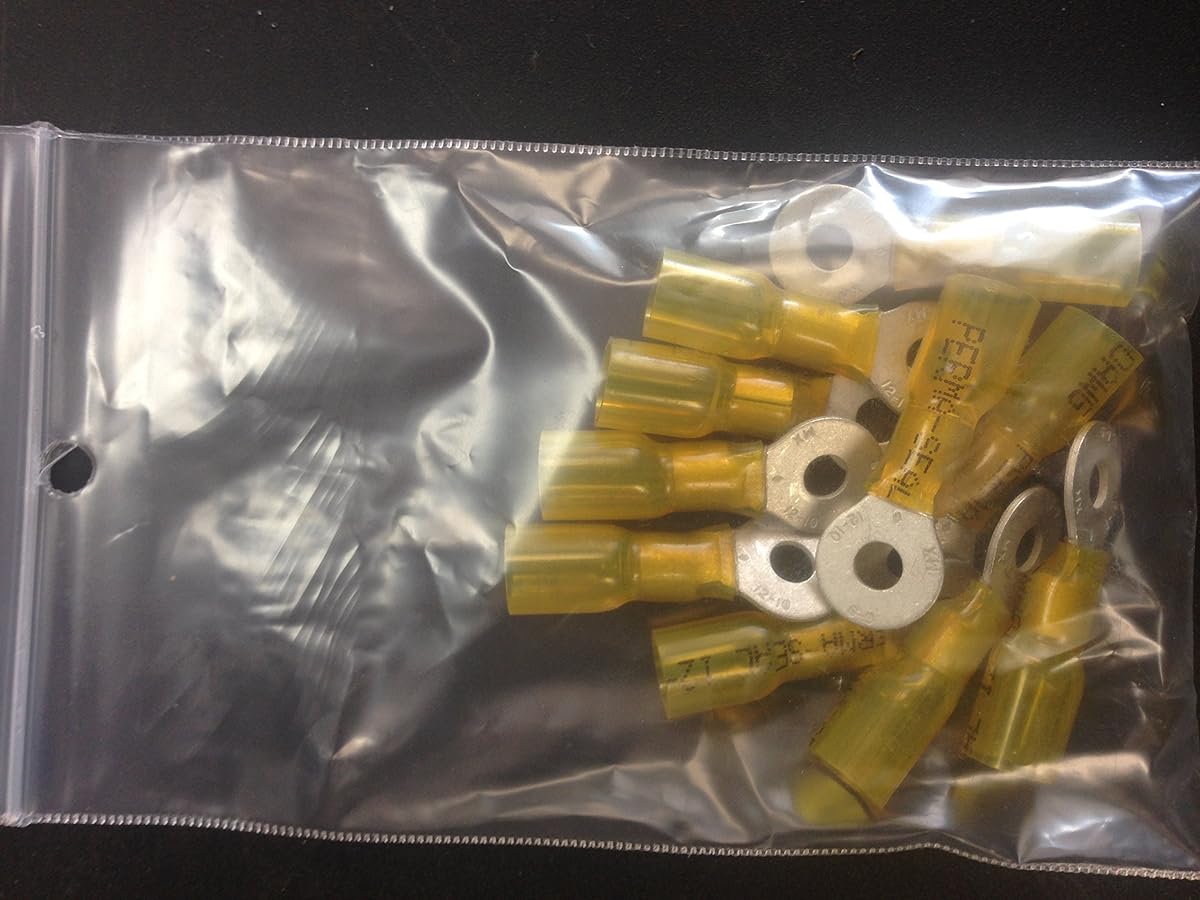

Ring Tongue Wire Terminal with Yellow Insulation

Condition: New
Brand: Molex
MPN: 19164-0065
MPN Xref:19164-0065, 70111093, WM18410-ND, 2215375, 191640065, 0191640065, MOL19164-0065, 538-19164-0065, 45W6572

This product is a ring tongue wire terminal with yellow insulation. It is made of copper alloy with tin plating and has a wire size range of 10-12 AWG. The barrel is closed and it has a low-halogen insulation type.

Wire Size mm?	3.09-5.01
Stud Size	M5 (#10)
Wire Insulation Diameter	7.87mm
Wire Size AWG	10, 12
Material - Plating Mating	Tin
Plating min - Mating	2.540?m
CSA	LR18689
Barrel Type	Closed
Plating min - Termination	2.540?m
UL	E32244
Insulation	NiAc
Package Quantity	1
Alternate Mfr Part Number	SC-230-10
Angle	Straight
Color	Yellow
Contact Material	Copper Alloy
Contact Plating	Electro-Tin
Family Name	Perma-Seal
Insulation Type	NiAc
Overall Length	39.4mm
Plating Material	Tin
Series	19164 Series
Special Features	Low-Halogen
Type	Ring Tongue
UPC Code	800753113497
Wire Size	10-12 AWG
Insulation Material	NiAc
Inner Ring Diameter	5.03mm
Thickness	0.79mm
Maximum Wire Size AWG	10AWG
Maximum Wire Size mm²	5mm²
Colour	Yellow
Minimum Wire Size AWG	12AWG
Minimum Wire Size mm²	3mm²
Series Number	0065
Outer Ring Diameter	13.7mm
Stock	Stock
