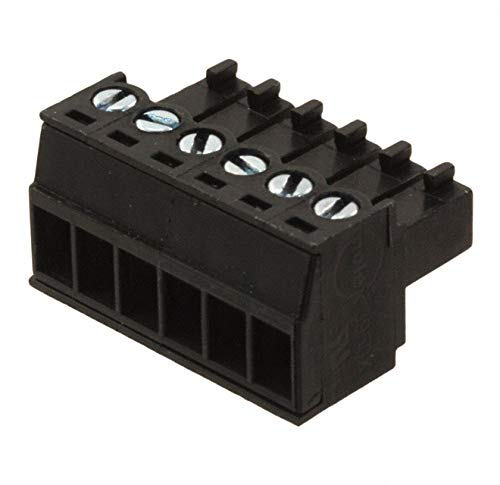

6-Position Female Plug Socket with Screw Termination

6-Position Female Plug Socket with Screw Termination

Regular price $0.27 USD
Regular price Sale price $0.27 USD
Sale Sold out
Shipping calculated at checkout.

27 in stock

Condition: New
Brand: MOLEX
MPN: 0395000006
MPN Xref:0395000006, MOLE-0040361, WM7736-ND, 39500-0006, 395000006

This plug socket is a 6-position female connector with screw termination style. It is free hanging and has a current rating of 8A and a voltage rating of 300V. The housing material is made of Polyamide and Nylon.
Part Status Active
Type Plug, Female Sockets
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation -
Plug Wire Entry 180?
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC -
Wire Gauge or Range - AWG 16-30 AWG
Wire Gauge or Range - mm? -
Color Black
Operating Temperature -40?C ~ 115?C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw 0.23 Nm (2.0 Lb-In)
Wire Strip Length 6.5mm
Contact Material Phosphor Bronze
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.440" (11.18mm)
Current - UL 8 A
Voltage - UL 300 V
Category Connectors, Interconnects
Series Eurostyle ESE 39500
Package Bulk
Product Status Active
Base Product Number 039500
