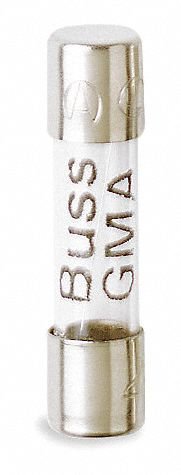

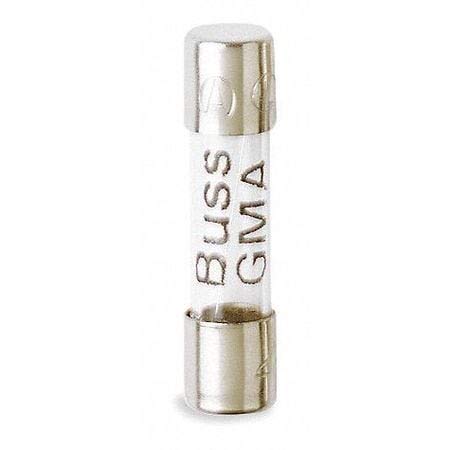

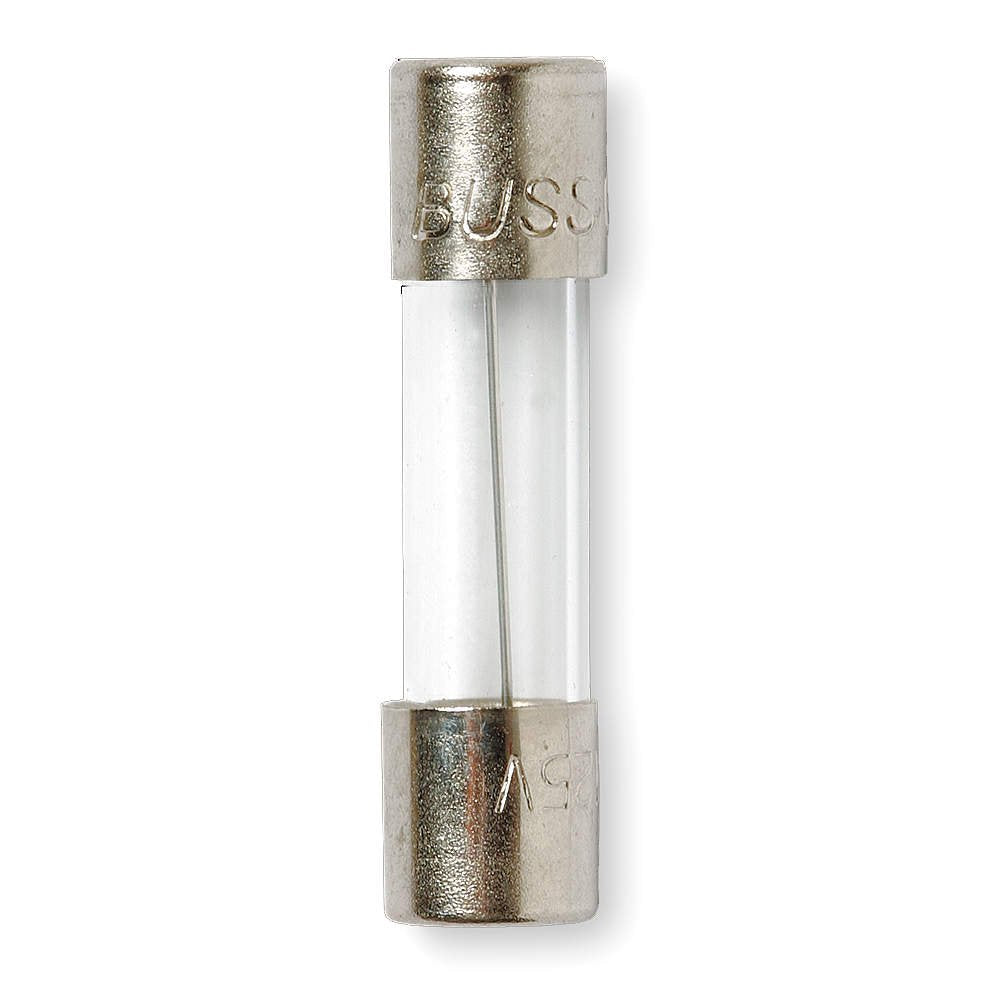

Fast-Acting Glass Fuse - 3.15A, 125V AC, 10kA

Condition: New
Brand: Bussmann
MPN: GMA-3.15-R
MPN Xref:GMA-3.15-R, BK/GMA-3.15-R, GMA-3.15BC-R, GMA-3.15-R-ND, 1375486, BKGMA315A, BK/GMA-3.15ABC, GMA-3.15ABC, BK/GMA-3.15

This fast-acting glass fuse has a breaking capacity of 10kA at 125V AC. It is RoHS compliant and suitable for electronic circuits.

Breaking Capacity @ Rated Voltage	10kA
Color	-
Current Rating (Amps)	3.15A
DC Cold Resistance	0.036 Ohms
Fuse Type	Cartridge, Glass
Lead Free Status / RoHS Status	RoHS Compliant
Manufacturer Part Number	GMA-3.15-R
Manufacturer Standard Lead Time	10 Weeks
Melting I?t	9.7
Mounting Type	Holder
Operating Temperature	-
Package / Case	5mm x 20mm
Packaging	Bulk Pack
Response Time	Fast Blow
Series	GMA
Size / Dimension	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Standard Package	5
Voltage Rating - AC	125V
Alternate Parts
Mpn	GMA-3-15-R
Upc	051712647922
Gtin	051712647922
Category	Glass Body Fuses
Alternate Mfr Part Number	GMA-3-15-R
Opening	Fast-Acting
Diameter	5 mm
Length	20 mm
Material	Glass Tube, Nickel-Plated Brass Endcap
Mounting	Cartridge
Volts AC	125
Interrupt Rating AC	10 kA
ECCN	EAR99
Country of Origin	CN
UNSPSC	39121607
Standard	UL 248-14, CSA, CE
Application	Electronic Circuits
End Type	Ferrule End x Ferrule End
Fuse Interrupt Rating	10kA at 125 V ac
Fuse Dimension	0.788 L x 0.197 in. Dia.
Rated Voltage	125V
Fuse Amps	3-3/20A
UPC	051712647922
Amperage Rating:	3.15 A
Size:	5.20 mm Diameter X 20.00 mm Height
Type:	Electronic, Fast Acting
Voltage Rating:	125 VAC
Connection:	Ferrule End X Ferrule End
Response Time:	120/3.6k s
Standard:	UL 248-14, CSA, CE
Catalog Number	GMA-3.15-R
Made in USA	No
Connection	Ferrule End X Ferrule End
Special Features	Low Breaking Capacity, Interrupt Rating 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
Item Type	Electronic, Fast Acting
Size	5.20 mm Diameter X 20.00 mm Height
Voltage Rating	125 Vac
Fuse Size	20mm L x 5mm dia
Length (Straight Wireway)	20 mm
Item	Fuse
Amps	3.15 amps Product Type: Fast Acting Glass Fuse
Speed	Fast Acting
AC Voltage Rating	125V AC
DC Voltage Rating	Not Rated
Interrupt Rating	10kA at 125V AC
Visual Indication	Glass Fuse
Body Style	Cylindrical
Fits Fuse Block Style	Nonrejection
Body Material	Glass
Element	Single
Standards	CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
Equivalent Series	235, GGM, GMA
Compatible Fuse Block Series	HTB
Fuse Speed	Fast Acting
In Line Fuseholder	E
Number in Package	5 pk Individual Product Diameter: 5 in. Application: Meters and Instruments
Tamper Proof	No
Individual Product Length	20 in. UL Listed: Yes
CSA Listed	No
Volts	125 volt Tube Construction: Glass
Packaging Type	Carded
