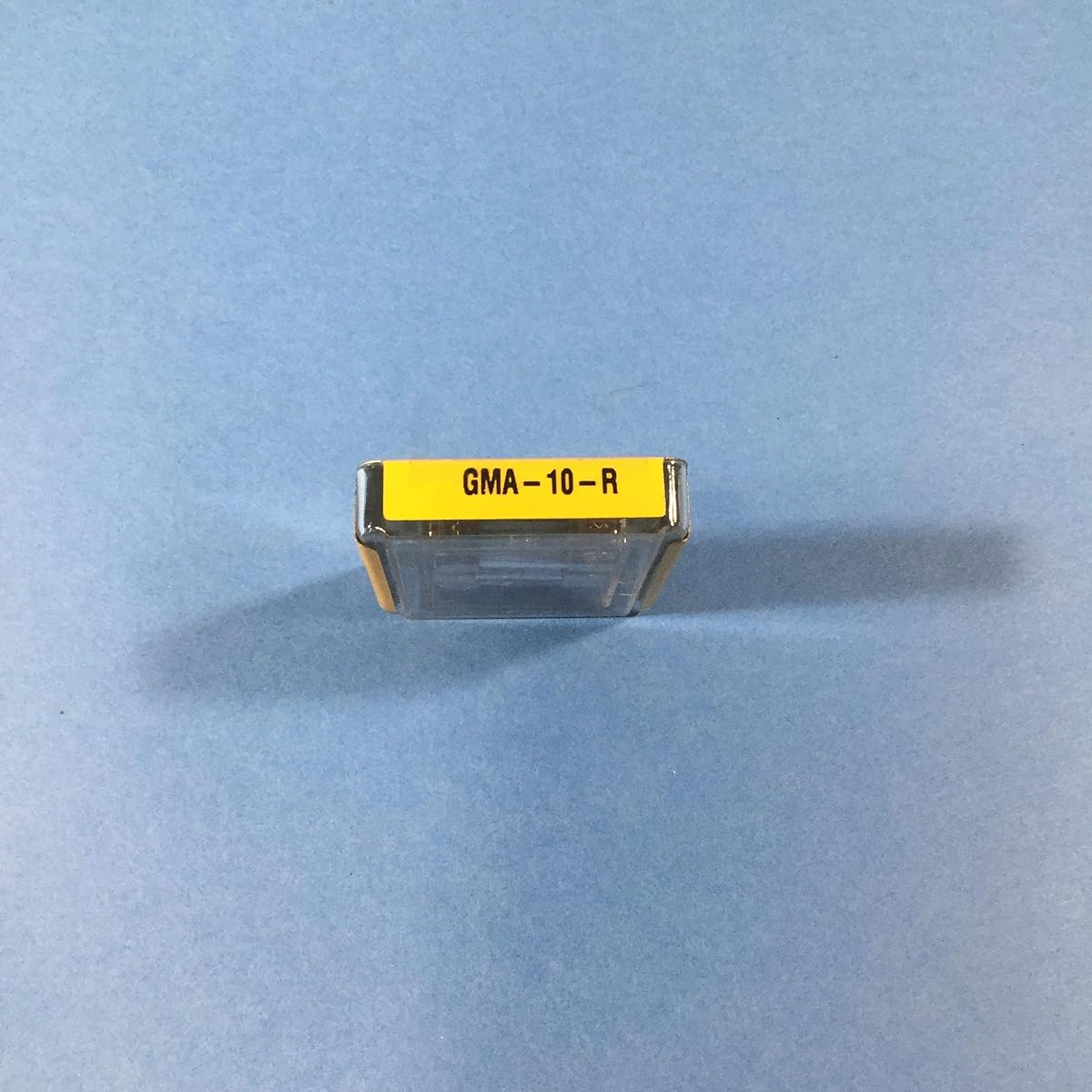

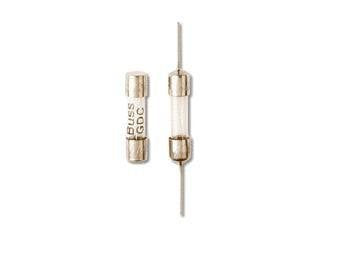

Fast-Acting Fuse for Cylinders and Electronic Circuits - 10A, 125V ac/32V dc

Condition: New
Brand: BUSSMANN
MPN: BK/GMA-10-R
MPN Xref:BK/GMA-10-R, 48K9524, 504-BK/GMA-10-R, 283-3278-ND, 83R2776, BK/GMA-10ABC, 504-GMA-10A, 1375493, 05171271672

This fast-acting fuse is perfect for use in cylinders, electronic circuits, and safety systems. It has a voltage rating of 125V ac/32V dc and an interrupt rating of 200A at 125V ac. The fuse dimensions are 20 L x 5 mm Dia.

Catalog Number	BK/GMA-10-R
Country of Origin	China
Made in USA	No
Amperage Rating	10
Application	Electronic circuits
Connection	Ferrule end x ferrule end
Interrupt Rating	200 AIC at 125 Vac
Material	Glass Tube, Nickel-Plated Brass Endcap
Response Time	Fast Blow
Special Features	Low Breaking Capacity, Interrupt Rating 200 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant, Packaging Quantity 100
Standard	CE Marked,RoHS Compliant
UPC	051712647205
Item Type	Fast-acting fuse
Size	5.20 mm Diameter X 20.00 mm Height
Voltage Rating	125 V
Mfr	Eaton - Electronics Division
Part Status	Active
Mounting Type	Clip
Fuse Type	Cartridge, Glass
Package / Case	5mm x 20mm
Breaking Capacity @ Rated Voltage	200A
Approval Agency	CSA, PSE, UL
Operating Temperature	-
Color	-
Size / Dimension	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Melting I?t	280
Current Rating (Amps)	10 A
Voltage Rating - AC	125 V
DC Cold Resistance	0.006 Ohms
Manufacturer Part Number	BK/GMA-10-R
Item Number	BK/GMA-10-R
Product Series	GMA
Current Rating	10 A
Voltage (AC)	125 VAC
Characteristic	Fast Acting
Package Type	Cartridge
Trip Indicator	No
Alarm Contact	No
Length (mm)	20.32 mm
Diameter (mm)	5 mm
Diameter (in)	0.2 "
RoHS	Yes
Length (In)	0.8 "
Net Weight	0 lbs
Gross Weight	0 lbs
ECCN	EAR99
UNSPSC	39121607
Use With	out axial leads
End Type	Ferrule End x Ferrule End
Fuse Interrupt Rating	200A at 125 V ac
Fuse Dimension	20 L x 5 mm Dia.
Rated Voltage	125V ac/32V dc
Shape	Rectangular
Fuse Amps	10A
Length	0.7874 in.
Height	0.1969 in.
Width	0.1969 in.
Package/Case	FUSE 10A 125V FAST GLSS 5X20 UL
Product Categories	Fuse
RoHs Status	Rohs
In-stock	12000
Mounting Style	Holder
Termination Style	Clip
Fuse Size / Group	5 mm x 20 mm
Dimensions	0.2 x 0.79 ; 5 x 20 in ; mm
Series	GMA Series
Type	Cylindrical Fuses
Case Diameter	5.2 mm
Case Length	20 mm
Packaging	Bulk
Product	Specialty Fuses
Resistance	0.006 Ohms
Factory Pack Quantity	100
Part # Aliases	BK-GMA-10-R
Alternate Part No.	504-BK/GMA-10-R
Body Style	Cylindrical
Fuse Size/Group	5 mm x 20 mm
Manufacturer	Eaton
Product Category	Cartridge Fuses
Manufacturer Part No.	BK/GMA-10-R
Product Type	Glass Fuse
Unit Weight	1 g
Voltage Rating AC	250 V
Body Material	Ceramic
DC Resistance	0.006 Ohms
Primary Type	Single Use Fuses
Speed	Fast Acting
Termination	Cartridge
Item	GMA-10A,Buss FA Bk 100 Box-R,PK100
Cap Diameter	5 1/5 in
AC Voltage Rating	125V AC
DC Voltage Rating	Not Rated
Compatible Fuse Block Series	1A3399, H15, HHT, HTB, HTC-15M
Equivalent Series	235, GGM, GMA
Diameter	5 mm
Fuse Size	20.00 mm L x 5.00 mm dia
Amps	10 A
Visual Indication	Nonindicating
Country of Origin (subject to change)	China
