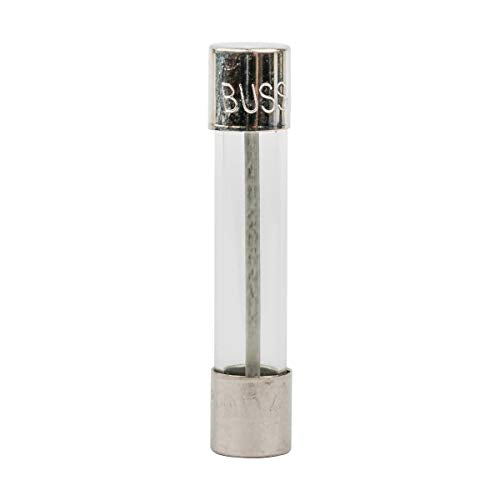

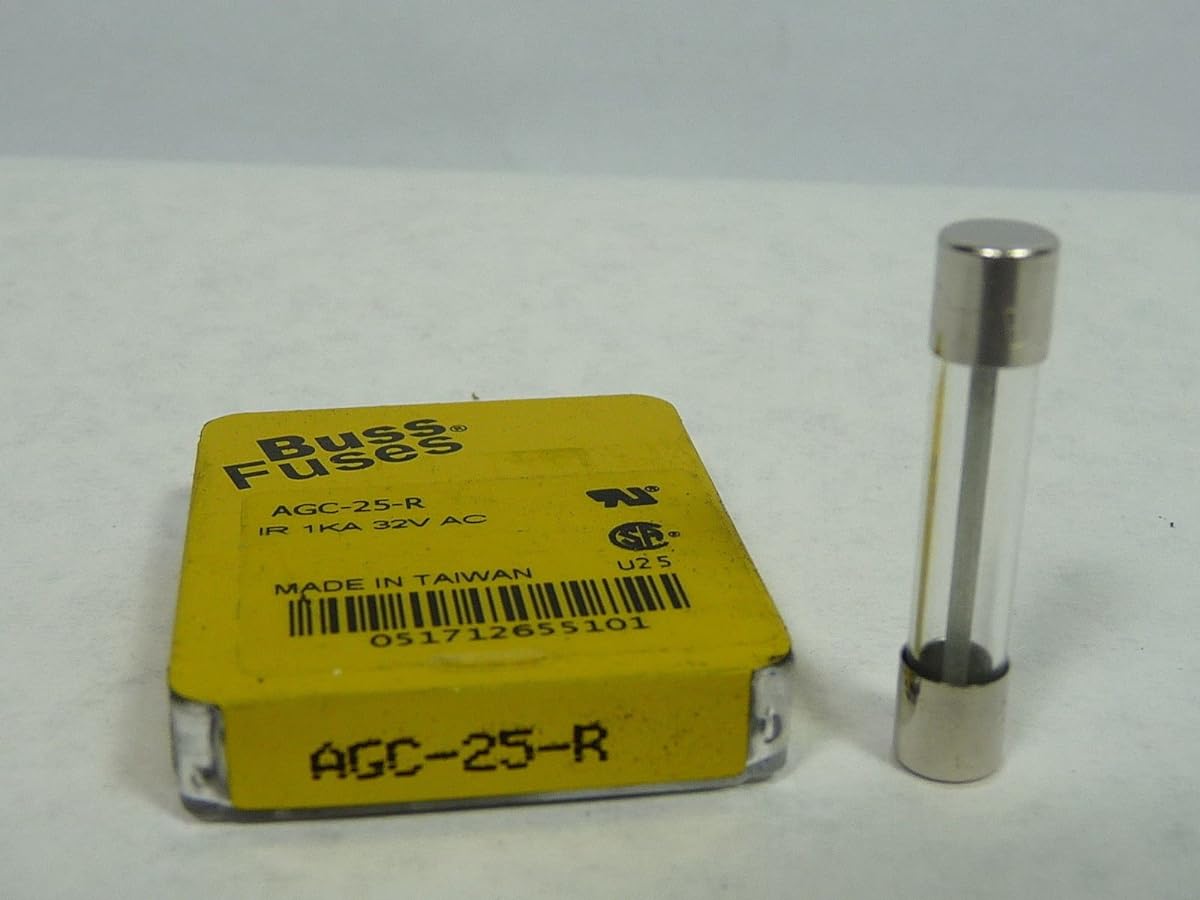

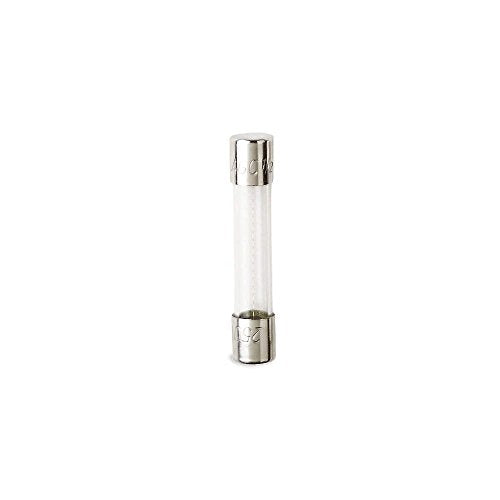

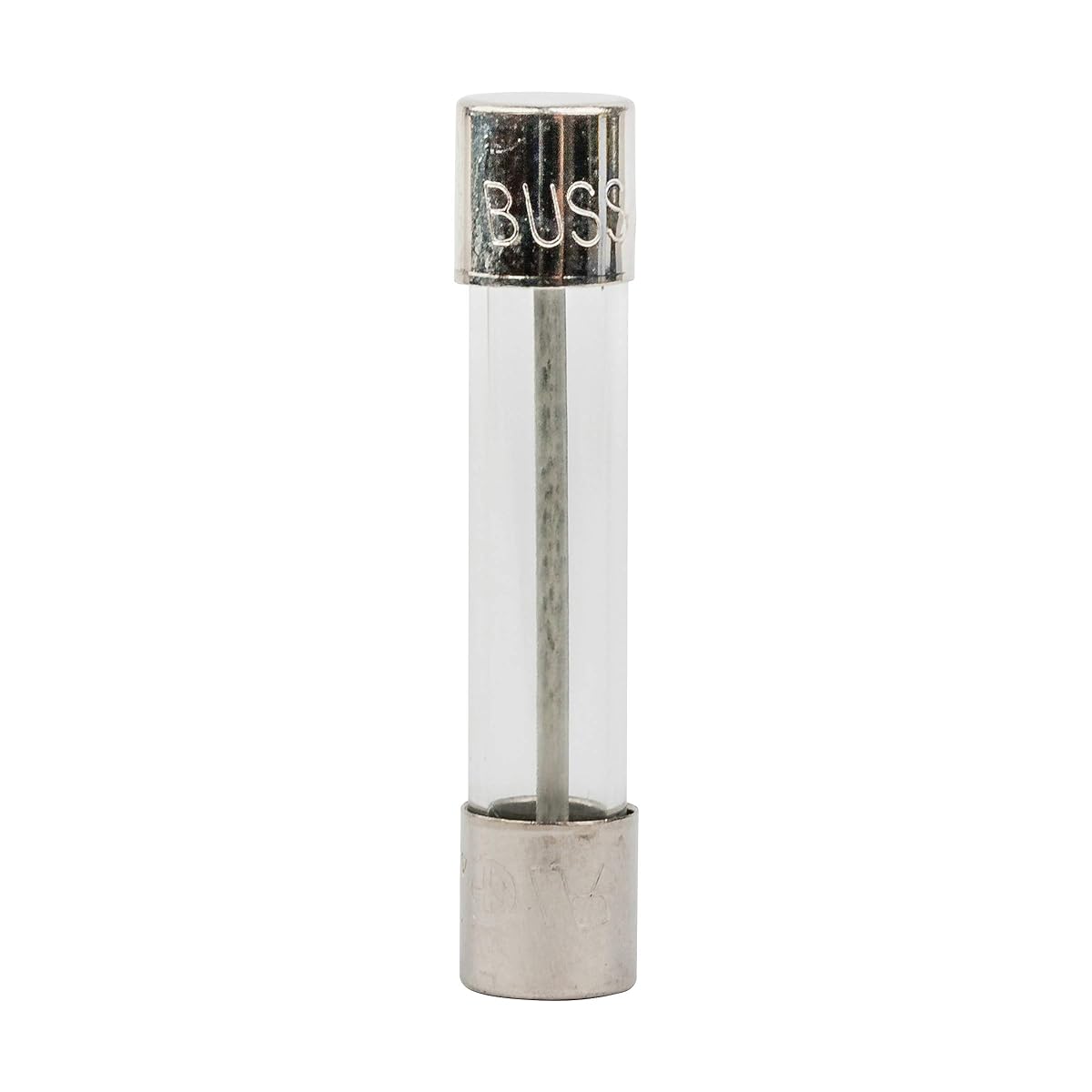

Fast-Acting Glass Tube Fuse 25A 32V - RoHS Compliant
Fast-Acting Glass Tube Fuse 25A 32V - RoHS Compliant
Regular price
$0.15 USD
Regular price
Sale price
$0.15 USD
Unit price
/
per
Shipping calculated at checkout.
168 in stock
Couldn't load pickup availability
Condition: New
Brand: Eaton
MPN: AGC-25-R
MPN Xref:AGC-25-R, 283-2868-ND, 504-AGC-25-R, AGC-25-R-ND, 05171265629, 48K9394, 4XH52, 48K8293, BK/AGC-25-R
This fast-acting glass tube fuse has a current rating of 25A and a voltage rating of 32V. It is RoHS compliant and can be used in electronic circuits and safety and security systems. The fuse has a cylindrical body made of glass and a ferrule end x ferrule end connection.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Eaton
MPN: AGC-25-R
MPN Xref:AGC-25-R, 283-2868-ND, 504-AGC-25-R, AGC-25-R-ND, 05171265629, 48K9394, 4XH52, 48K8293, BK/AGC-25-R
This fast-acting glass tube fuse has a current rating of 25A and a voltage rating of 32V. It is RoHS compliant and can be used in electronic circuits and safety and security systems. The fuse has a cylindrical body made of glass and a ferrule end x ferrule end connection.
| Manufacturer Part Number | AGC-25-R |
| Item Number | AGC-25-R |
| Manufacturer | Bussmann |
| Product Series | AGC |
| Family Series | Bussmann Fuses, AGC Series |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Current Rating | 25 A |
| Voltage (AC) | 32 VAC |
| Characteristic | Fast Acting |
| Package Type | Cartridge |
| Interrupt Rating | 1kA at 32V DC |
| Trip Indicator | No |
| Alarm Contact | No |
| Length (mm) | 31.75 mm |
| Diameter (mm) | 6.35 mm |
| Diameter (in) | 0.25 " |
| Approvals | CE, CSA, UR |
| RoHS | Yes |
| Length (In) | 1.25 " |
| Net Weight | 0.006 lbs |
| Gross Weight | 0.006 lbs |
| Shipping Weight | 0.001 pounds |
| ECCN | EAR99 |
| Manufacturer P/N | AGC-25 |
| Schedule B Code | 8536.10.0020 |
| Pack Quantity | 1 |
| Fuse Size | 1 1/4 in L x 1/4 in dia |
| Length | 1.25 IN |
| Diameter | 1/4" |
| Length (Straight Wireway) | 1 1/4 in |
| Item | Fuse |
| Amps | 25A |
| Speed | Fast Acting |
| Series | AGC Series |
| AC Voltage Rating | 32V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Glass Fuse |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Nonrejection |
| Body Material | Glass |
| Element | Single |
| Standards | CE, UL 248-14 Guide JDYX2, CSA Certification Class 1422-01 |
| Equivalent Brand and Series | Bussmann AGC, Bussmann MMB, Littelfuse 311, Littelfuse 312, Littelfuse 3AG, Mersen GGC |
| Equivalent Series | 311, 312, 3AG, AGC, GGC, MMB |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| In Line Fuseholder | G |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Amps | 25A |
| Rejection / Nonrejection | Nonrejection |
| SKU | ZO-G2047884 |
| Current Stock | 42 |
| Mpn | AGC-25-R |
| UPC | 051712655101 |
| SubCategory | Electrical |
| International Shipping | No |
| Country of Origin | TW |
| UNSPSC | 39121607 |
| Standard | UL Recognized; CSA Certified |
| Application | Electronic circuits |
| Connection Type | Ferrule end x ferrule end |
| Use With | out axial leads |
| End Type | Ferrule End x Ferrule End |
| Fuse Interrupt Rating | 1000A at 32 V ac |
| Fuse Dimension | 1-1/4 L x 1/4 in. Dia. |
| Rated Voltage | 32V ac, 32V dc (self certified) |
| Response Time | 60 min maximum at 135%, 120 s maximum at 200% |
| Shape | Rectangular |
| Opening | Fast-Acting |
| Volts AC | 32 |
| Mounting | Cartridge |
| Interrupt Rating AC | 1kA |
| Interrupt Rating DC | 1kA |
| Catalog Number | AGC-25-R |
| Sub Brand | Bussmann Series |
| Made in USA | No |
| Amperage Rating | 25A |
| Connection | Ferrule end X ferrule end |
| Special Features | Interrupt Rating 1000 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Item Type | Fast-acting glass tube fuse |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Voltage Rating | 32 Vac, 32 Vdc (self certified) |
| Alternate Mfr Part Number | AGC-25-R |
| Category | Circuit Protection |
| Amperage Rating: | 25 A |
| Size: | 1/4 In Diameter X 1-1/4 In Length |
| Type: | Electronic, Fast Acting |
| Voltage Rating: | 32 VAC |
| Connection: | Ferrule End X Ferrule End |
| Response Time: | 120/3.6k s |
| Standard: | UL 248-14, CSA, CE |
| Height | .25 IN |
| Width | .25 IN |
| Weight | .004 LB |
| Packaging Type | Standard |
| Used With | out axial leads |
| Fuse Indicator | Non Indicating |
| Part Number | AGC-25-R |
| Item model number | LEPUSPTLSHI4355 |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| ASIN | B01D39XMOK |
| Package | Active |
| Part Status | Holder |
| Mounting Type | Cartridge, Glass |
| Fuse Type | Cartridge, Glass |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | CSA, UL |
| Approval Agency | - |
| Operating Temperature | - |
| Color | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Size / Dimension | 2.109 |
| Melting I?t | 2.109 |
| Current Rating (Amps) | 25A |
| Voltage Rating - AC | 0.003 Ohms |
| DC Cold Resistance | 0.003 Ohms |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Standard Lead Time | 12 Weeks |
| Packaging | Bulk Pack |
| Standard Package | 5 |
| Alternate Parts |
