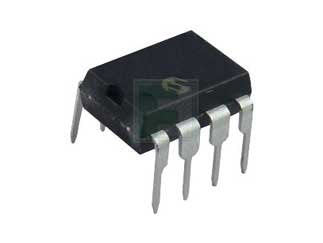

93C66B-I/P IC EEPROM 4KBIT MICROWIRE 8DIP

Condition: New
Brand: Microchip
MPN: 93C66B-I/P
MPN Xref:93C66B-I/P

IC EEPROM 4KBIT MICROWIRE 8DIP

Category	Integrated Circuits (ICs)
Series	-
Package	Tube
Part Status	Active
Memory Type	Serial EEPROM
Memory Format	EEPROM
Technology	EEPROM
Memory Size	4Kb (256 x 16)
Memory Interface	SPI
Write Cycle Time - Word, Page	2ms
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40 to +85 °C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
Clock Frequency	2 MHz
Manufacturer Product Number	93C66B-I/P
Description	IC EEPROM 4KBIT MICROWIRE 8DIP
Manufacturer Standard Lead Time	4 Weeks
Detailed Description	EEPROM Memory IC 4Kbit Microwire 2 MHz 8-PDIP
Product Status	Active
DigiKey Programmable	Verified
Memory Organization	256 x 16
Base Product Number	93C66B
Operating Supply Voltage	4.5 V to 5.5 V
Data Retention	200 Years
Product Category	EEPROM
Maximum Operating Current	2 mA
Organisation	256 x 16
Maximum Operating Temperature	+ 85 C
Package/Case	PDIP-8
Supply Voltage - Max	5.5 V
Mounting Style	Through Hole
Interface Type	Serial, 3-Wire, Microwire
Minimum Operating Temperature	-40 °C
Alternate Part No.	579-93C66B-I/P
Manufacturer Part No.	93C66B-I/P
Supply Voltage - Min	4.5 V
Operating Current	2 mA
Access Time	250 ns
Maximum Clock Frequency	2 MHz
Packaging	Tube
Type of integrated circuit	EEPROM memory
Kind of memory	EEPROM
Interface	3-Wire
Memory organisation	256x16bit
Clock frequency	2MHz
Mounting	THT
Case	DIP8
Memory capacity	4kb
Kind of interface	serial
Operating temperature	-40...85?C
Max number of cycles	1M
Access time	2ms
Operating voltage	4.5...5.5V
Address Setup Time	50 ns
Current, Input, Leakage	1 uA
Current, Output, Leakage	±1 μA
Density	4 kbit
Dimensions	0.400 x 0.280 x 0.195 in
ESD Voltage	≥4 kV
Height	0.195" (5mm)
Input Capacitance	7 pF
Length	0.4 in
Memory Capacity	4 KB
Number of Bits per Word	16 bit
Number of Pins	8
Operating Voltage Range	4.5 to 5.5 V
Organization	256 x 16
Output Capacitance	7 pF
Package Type	PDIP
Product Header	4K Microwire Compatible Serial EEPROM
Programmable Voltage	4.5 V
Supply Voltage	4.5-5.5 V
Temperature Operating Range	-40 to +85 °C
Voltage, Input, High Level	5.5 V
Voltage, Input, Low Level	0.8 V
Voltage, Output, High Level	2.4 V
Voltage, Output, Low Level	0.4 V
Width	0 in
