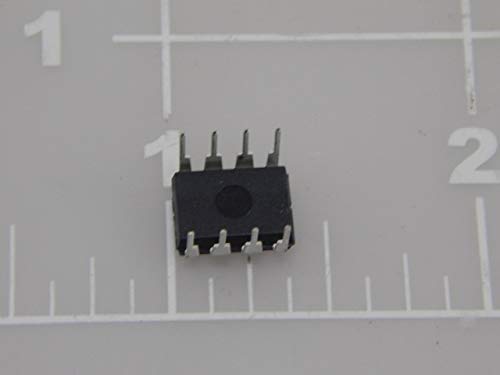

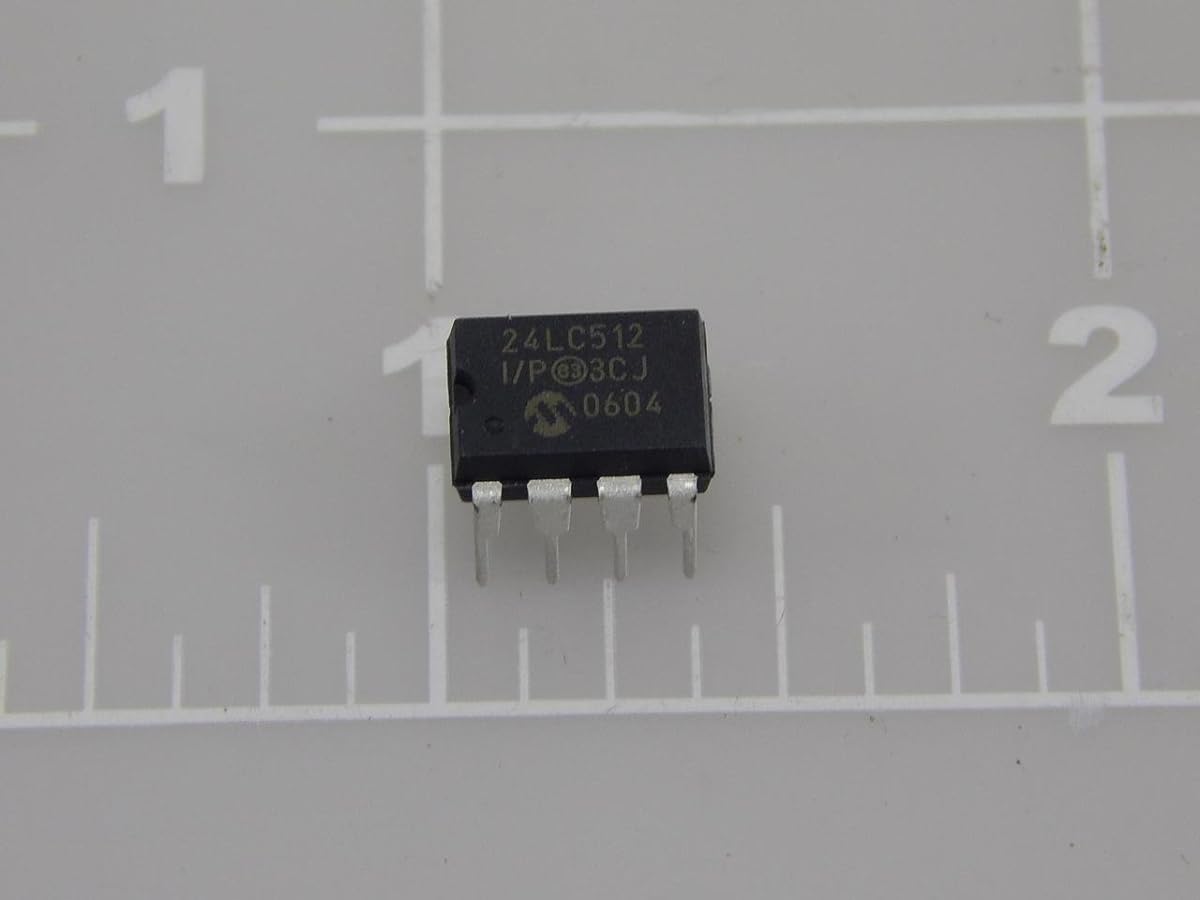

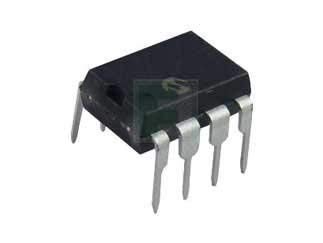

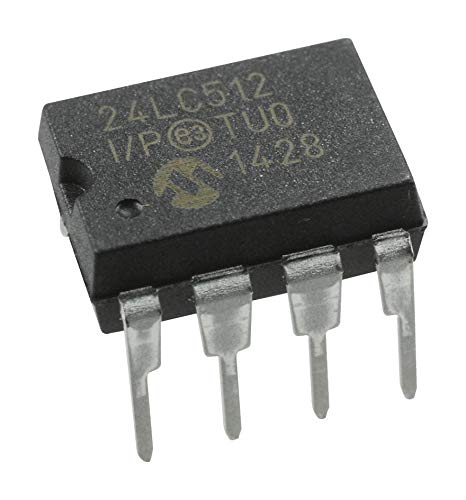

This is a PDIP-8 package EEPROM with a memory capacity of 512 KB. It operates on a supply voltage range of 2.5 to 5.5 V and has a maximum operating temperature of +85°C. It is RoHS compliant and has a 2-wire I2C interface. It is suitable for through-hole mounting.
Type of integrated circuit
EEPROM memory
Kind of memory
EEPROM
Interface
I2C
Memory organisation
64kx8bit
Clock frequency
400kHz
Mounting
THT
Case
DIP8
Memory capacity
512kb
Kind of interface
serial
Operating temperature
-40...85?C
Max number of cycles
1M
Access time
5ms
Operating voltage
2.5...5.5V
Package/Case
PDIP-8
Product Categories
EEPROM
RoHs Status
Lead free/RoHS Compliant
In-stock
8590
Maximum Operating Current
5 mA
Operating Supply Voltage
2.5 V
Maximum Operating Temperature
+ 85 C
Mounting Style
Through Hole
Package / Case
PDIP-8
Access Time
900 ns
Interface Type
I2C
Minimum Operating Temperature
- 40 C
Operating Current
5 mA
Packaging
Tube
Factory Pack Quantity
60
Supply Voltage Max
5.5 V
Supply Voltage Min
2.5 V
Current, Input, Leakage
1 uA
Current, Output, Leakage
±1 μA
Data Retention
200 Years
Density
512 kbit
Dimensions
0.400 x 0.280 x 0.195 in
ESD Voltage
≥4 kV
Fall Time
300 ns
Height
0.195" (5mm)
Input Capacitance
10 pF
Length
0.4 in
Memory Capacity
512 KB
Memory Type
Serial EEPROM
Mounting Type
Through Hole
Number of Bits per Word
8 bit
Number of Pins
8
Operating Temperature
-40 to +85 °C
Operating Voltage Range
2.5 to 5.5 V
Organization
64K x 8
Output Capacitance
10 pF
Package Type
PDIP
Product Header
512K I
Programmable Voltage
2.5 V
Rise Time
300
Series
24LC512 Series
Supply Voltage
2.5-5.5 V
Temperature Operating Range
-40 to +85 °C
Voltage, Input, High Level
1.75 V
Voltage, Input, Low Level
0.75 V
Voltage, Output, Low Level
0.4 V
Width
0 in
