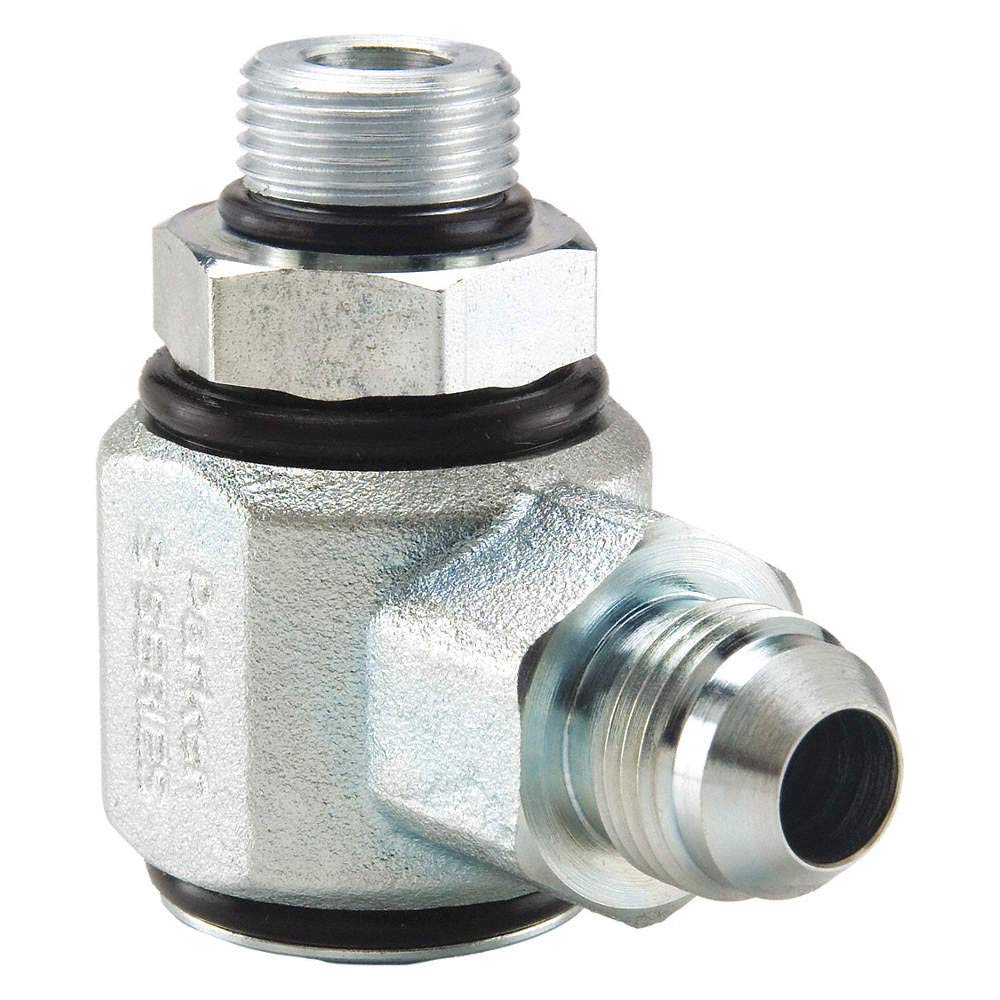

Hydraulic Swivel Fitting - 90 Degree Elbow - Steel - Zinc-Plated

Condition: New
Brand: Parker
MPN: S2503-12-12
MPN Xref:S2503-12-12

This Hydraulic Swivel Fitting is made of steel with a zinc-plated finish. It has a 90-degree elbow shape and is designed for use on hydraulic systems. The fitting has a male JIC thread on one end and a male SAE O-Ring straight thread on the other end. It has a maximum working pressure of 3,000 PSI and a maximum operating temperature of 250 degrees Fahrenheit. The swivel angle is 90 degrees.

SKU	CU-353356433733
Current Stock	20
Mpn	S2503-12-12
Availability	In Stock, ships within 2 days
MPN	S2503-12-12
SubCategory	Hydraulics
Prop 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
International Shipping	No
Material	HAWA
Fitting Thread Size 1	1-1/16"-12
Fitting Thread Size 2	1-1/16"-12
Inlet Connection Size	1 1/16 in
Outlet Connection Size	1 1/16 in
Overall Length	3.4 in
Item	Hydraulic Swivel Fitting
Fitting Shape	90 Degrees Elbow
Finish	Zinc Trivalent Chromate
Fitting Material	Steel
Hose Adapter Material	Carbon Steel
Fitting Thread Type 2	Male JIC
Max. Working Pressure (PSI)	3,000
Fitting Thread Type 1	Male SAE
Fitting Material Finish	Zinc-Plated
Inlet Connection	1 1/16 in Male JIC
Outlet Connection Gender	Male
For Use On	Hydraulic 90 Degrees Elbow
Outlet Connection	1 1/16 in Male SAE O-Ring Straight
Outlet Connection Type	SAE O-Ring Straight
Inlet Connection Type	JIC
Maximum Operating Pressure	3,000 psi
Maximum Operating Temperature	250 Degrees F
Swivel Angle	90 Degrees
Seal Material	Nitrile
:	N/A
